Larger than the 12s and 13s, with longer 3' stick and hydraulic thumb avail! Available only in cabless. Side Stick Controls for comfort!

DELIVERY AVAILABLE! FINANCING AVAILABLE!

BRAND-NEW. 3' Stick! This is a slightly bulkier unit than the comparable 1-ton AGTs, Relys and Machpros.

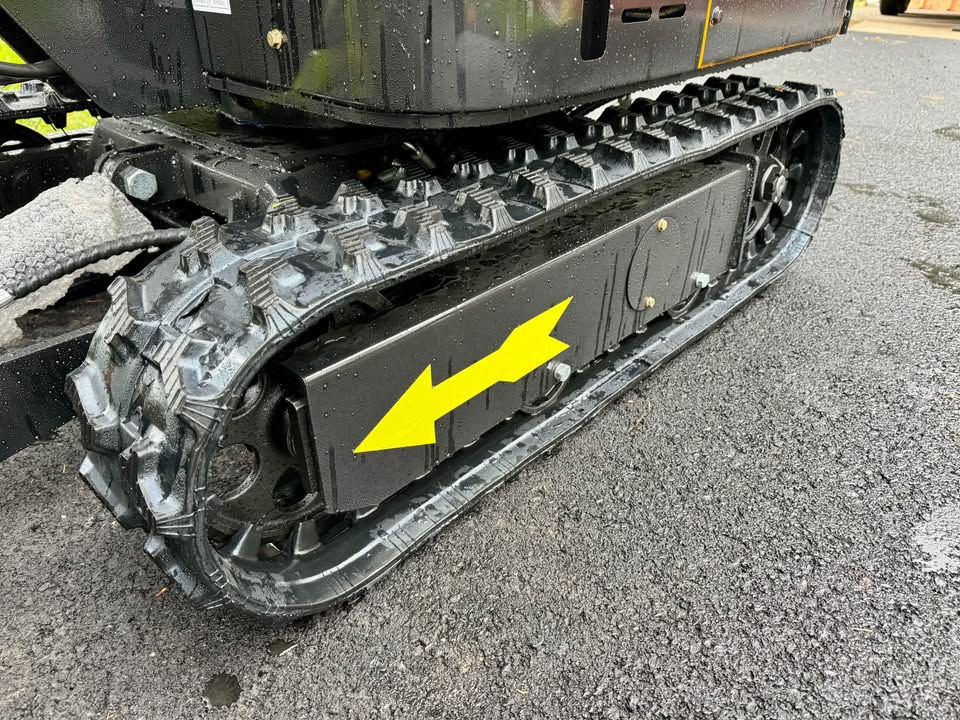

15HP UPGRADED ENGINE, 39" WIDE, 7" TRACKS, MANUAL THUMB WITH UPGRADE AVAILABLE TO HYDRO ($599), ELECTRIC KEY START, PUSH BLADE, AUXILLARY HYDRAULIC LINES ROUTED IN THE ARM FOR EXTRA PROTECTION, SIDE STICK PILOT CONTROLS, 360 DEGREE ROTATE. WEIGHS 2200LBS. COMES WITH 15" BUCKET, MANY ATTACHMENTS IN STOCK- Hydraulic Buckets up to 40" compatible.

This model digs 5.5' down. Boom Lighting with Aux wiring, all standard. If you're looking for the easiest to work on, slightly larger upgrade from the 12-13s, this is it!

Attachments are in stock and ready to go!

• Engine Brand：RATO

• Engine Engine Model: R420D

• Working Weight:    1050kg/2315lbs

• Bucket capacity(m³):    0.025

• Climbing ability(%):      35

• Fuel grade:                    92#

• Fuel type:                      Gasoline

• Engine oil change quantity (L): 1.1

• Theoretical fuel consumption (L/h): 0.5-1.2

• Traveling speed low/high speed(Km/h): 0~2.0

Hydraulic system：

• Rated set pressure (Mpa):       23.5 Rated set pressure (Mpa):       18 Travel hydraulic motor type:    BM6K-315 Slewing hydraulic motor type: BM2-315

• Fuel tank Fuel tank(L): 6.7

• Hydraulic oil tank (L): 18

• Maximum flow rate of main pump(L/min): 23.4

Operating parameters：

• Max Arm Height: 102.76 inches

• Max Unloading Height: 72.83 inches

• Max Digging Depth: 65 inches

• Max Digging Radius: 112.2 inches

• Overall Length: 84.25 inches

• Overall Width: 39.37 inches

• Maximum power(Kw): 8.6

• Maximum speed (rpm): 3600
