2 in stock, 4/11/25!
This is the most compact model offered with the hydro package- hydraulic swing boom, hydraulic thumb, and a cab to top it off! This model retails with AGT at over $10K and is sold out everywhere! Briggs upgrade!
In stock here at Ohio Mini: $6,499!
Engine:
- Brand: Briggs & Stratton (B&S)
- Model: 13.5 HP
- Power Output: 9.8 kW
- Maximum Speed: 3,600 RPM
- Cylinders: 1
- Cooling Method: Fan cooling
- Engine Oil Capacity: 1.1 liters
- Fuel Type: Gasoline
- Fuel Grade: 92#
- Theoretical Fuel Consumption: 0.5-1.2 liters per hour
Performance:
- Operating Weight: 2,150 lbs (975 kg)
- Maximum Digging Depth: 1,650 mm
- Maximum Digging Height: 2,400 mm
- Maximum Digging Radius: 3,080 mm
- Maximum Climbing Ability: 30°
Hydraulic System:
- Main Pump Type/Model: Gear pump/06
- Main Pump Brand: Tianjin Xingzou
- Rated Set Pressure: 16 MPa
- Maximum Flow Rate of Main Pump: 21.6 liters per minute
- Multi-way Valve: 8 multi-way valves
- Multi-way Valve Brand: Bei Fang
Dimensions:
- Overall Length: 2,738 mm
- Overall Width: 935 mm
- Overall Height: 2,209 mm
- Bulldozer Width/Height: 907 mm / 210 mm
Undercarriage:
- Track Type: 7-inch rubber tracks
Additional Features:
- Cabin: Enclosed cab (no air conditioning)
- Boom: Articulating/swing boom with a 30° angle
- Attachments: Hydraulic thumb installed, 13-inch digging bucket, push blade
- Auxiliary Hydraulics: Yes
Specific Data:
Basic Performance Parameters | Working Weight(kg) | 940 |
Bucket capacity(m³) | 0.03 | |
Travel speed low/high speed(Km/h) | 0-0.2 | |
Climbing ability(%) | 30 | |
A Maximum Digging Height(mm) | 2795 | |
B Maximum Unloading Height(mm) | 1863 | |
C Maximum Digging Depth(mm) | 1684 | |
E Max. digging radius(mm) | 3112 | |
Side Swing | √ | |
Side Swing Angle (L/R) | 30° | |
undercarriage expansion | × | |
Body | J Overall Length(mm) | 2738 |
K Overall Width(mm) | 935 | |
L Overall Height(mm) | 2209 | |
Bulldozer Width/Height | 907/210 | |
Engine | Engine Brand | B&S |
Engine Model | 13.5HP | |
Max. power(Kw) | 9.8 | |
Max. speed(rpm) | 3600 | |
Cylinders | 1 | |
Cooling method | fan cooling | |
Engine oil change quantity(L) | 1.1 | |
Fuel Type | Gasoline | |
Fuel Grade |

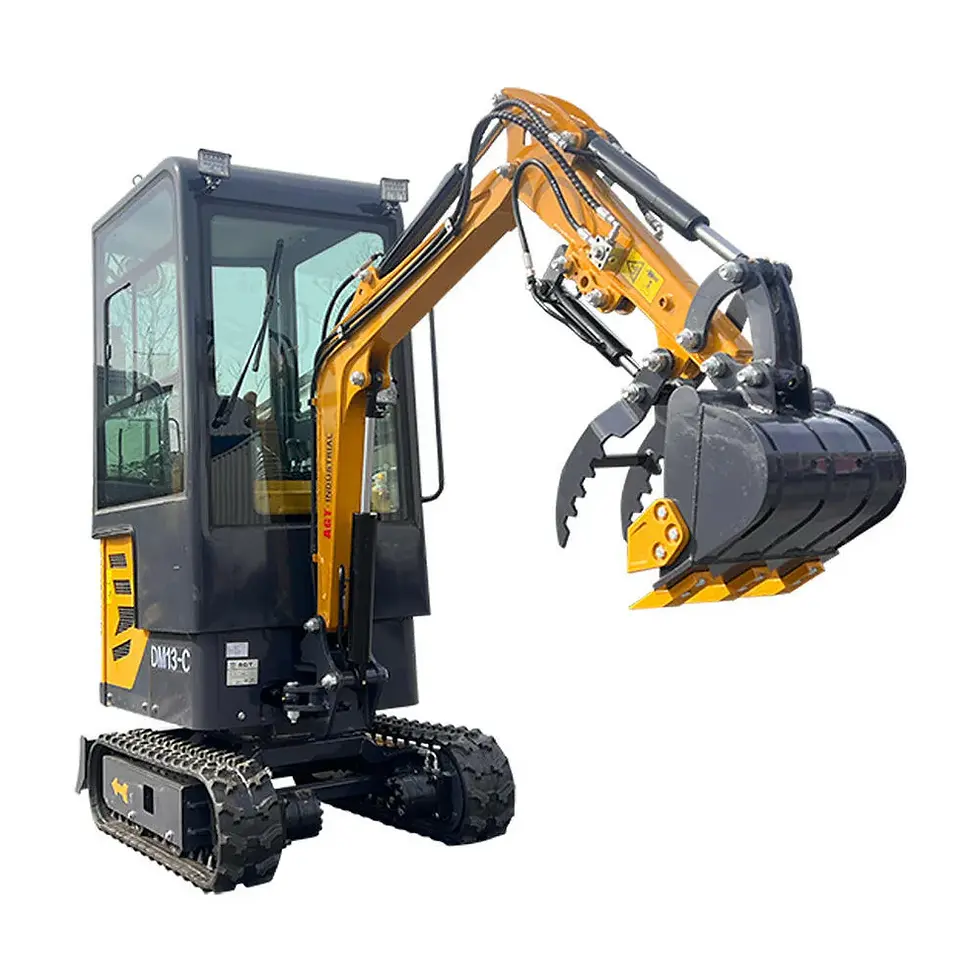

New Model- AGT DM13-C, Swing Boom, Hydro Thumb, Cab, Etc!
$10,299.00 Regular Price
$6,499.00Sale Price
