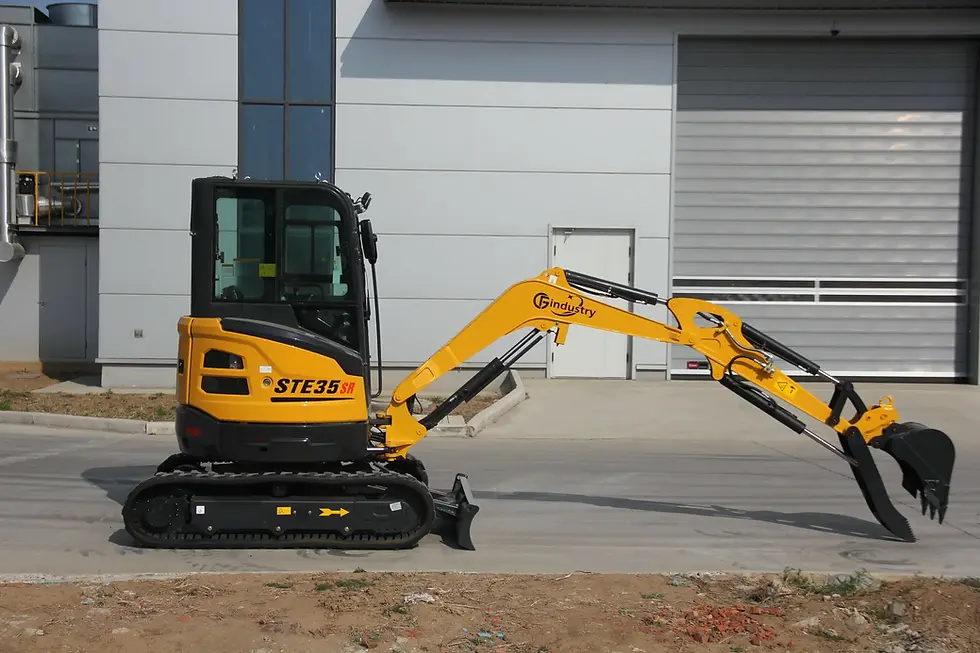

The commercial-grade 3 Ton STE35 is in stock here at Ohio Mini! (3/19/25)
This has every option you can order from any Bobcat/Kubota/Case/etc.
Yanmar powered. $36K MSRP. Compare this to a Bobcat E26, Cab package, 24" Bucket. Surprise the Bobcat is $51,000+.
IN STOCK, HERE ON THE GROUND, AT OHIO MINI. $27,999. NO WAIT. NO ORDERING.
If you're a contractor and will be using your machine daily, this is the one for you! Get the machine that our largest government contract accounts use!

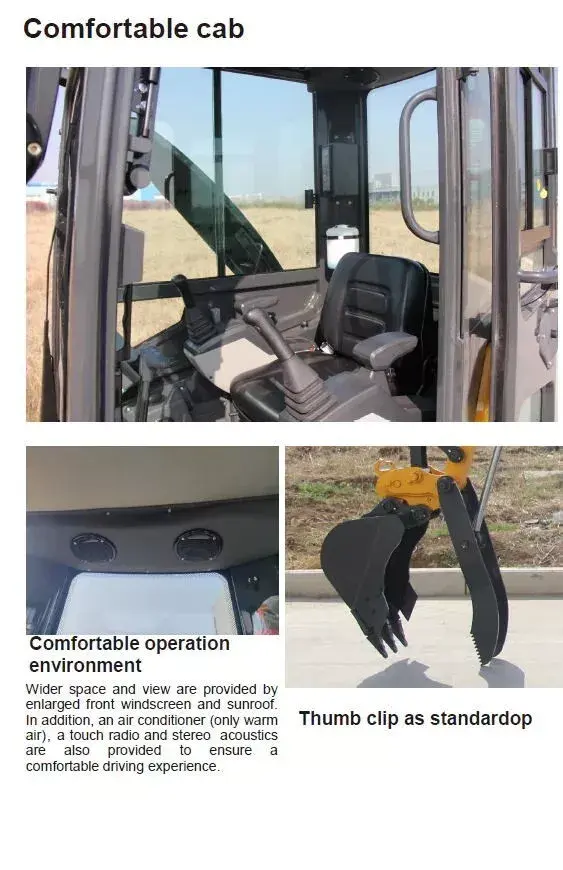

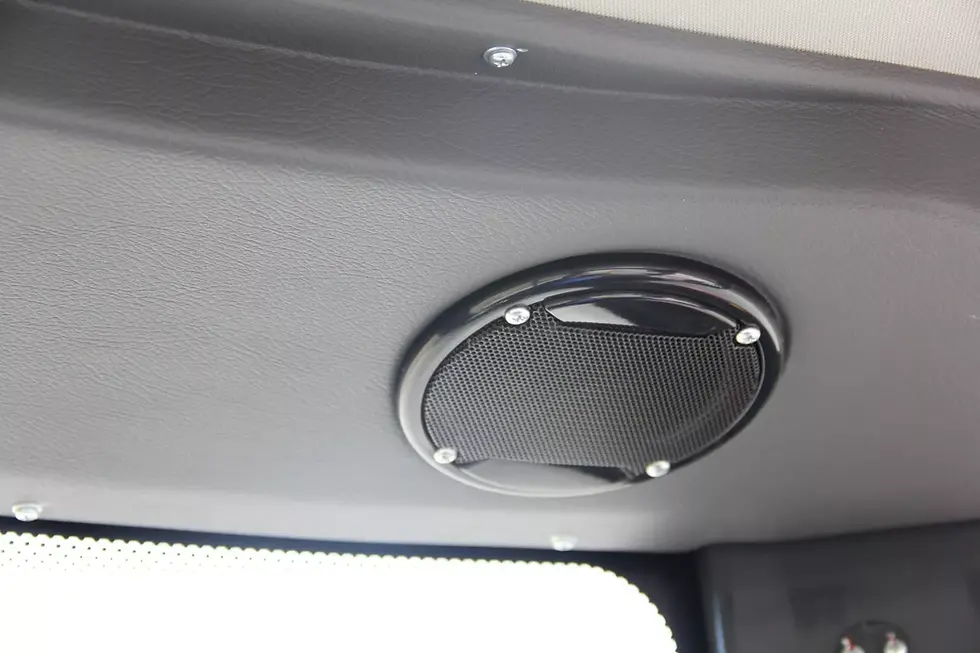

Enclosed Cab, Air Conditioner, Swing Boom, 4 ft 8 in Stick, Auxiliary Hydraulic Plumbing, 54" Backfill Blade, INCLUDED option- 12 in Double Grouser Track Shoes, 24 in Digging Bucket. Air Conditioning. Radio. Every Single Option. Swing Boom. This machine digs down almost 10 feet. See the pics for full specs. Top of the line. Do your research on this one, you'll see it is simply the best.
Yanmar has adopted this model to be in their standard lineup for 2027. That means, same machine, half the cost. This is the same as a Shantui, the legendary Euro machine that sells for 35K+ Euros.
ENGINE
Model :YANMAR 3TNV88F
Type :Three cylinder direct injection
No. of cylinder : 3
Emission :EPA Tier 4 Final/Europe Stage V
Displacement :100.2cu.in(1.642L)
Power output :25.41hp(18.2kW/2200rpm)
HYDRAULIC SYSTEMH
Type :Variable plunger pump
Max. hydraulic flow :25.6gal/min(96.8L/min)
This machine can run any 3 ton attachment. The smaller attachments will simply blow out with this much force. We can order any special attachment you need.
DIGGING FORCE (ISO6015)
Bucket digging force : 6834lbf(30.4kN)
Arm digging force : 4092lbf(18.2kN)
BUCKET
Type :Backhoe bucket
Bucket capacity :0.16cu.yd(0.12m3 )
Bucket width :25.6in.(650mm)
DRIVE SYSTEM
Carrier roller qty :1×2
Track roller qty :2×4
Track shoes :2×44
Travel speed :1.5/2.7mph(2.4/4.4 km/h)
Ground clearance :11.6in.(295mm)
Grade ability ：≤30°
SWING SYSTEM
Swing speed ：0-9r/min
REFILLING CAPACITIES & LUBRICATIONS
Fuel tank ：13.2gal(50L)
Cooling system ：1.85gal(7L)
Engine oil ：1.8gal(6.7L)
Hydraulic oil tank ：10.6gal(40L)
System Capacity :10.6gal(40L)
OPERATING WEIGHT AND GROUND PRESSURE
Shoe width :11.8in.(300mm)
Ground pressure :4.64psi(32kPa)
Operating weight :8378lbs(3800kg)
DIMENSIONS (Boom: 100in.(2540mm) 55.1in.(1400mm))
Overall length：192.1in.(4880mm)
Ground contact length (Transportation)：132.3in.(3360mm)
Overall height(to top of boom)：74in.(1880mm)
Oveall width：68.5in.(1740mm)
Overall height(to top of cab)：100.4in.(2550mm)
Counter weight ground clearance：23.4in.(595mm)
Ground clearance：11.6in.(295mm)
Tail swing radius：33.9in.(860mm)
Crawler wheel base：65.8in.(1670mm)
Track length：84.8in.(2155mm)
Track gauge: 56.7in.(1440mm)
Track width: 68.5in.(1740mm)
Shoe width：11.8in.(300mm)
Bonnet height：61.02in.(1550mm)
Revolving frame width：61.02in.(1550mm)
Distance from swivel center to tail：33.9in.(860mm)
Compare these specs- It's unbelieveable!
