The H15 is here and ready to go, with longer 3' stick and hydraulic thumb already in place! Available only in cabless. Side Stick Controls for comfort. Yellow and Blue both in stock!



DELIVERY AVAILABLE! FINANCING AVAILABLE!



BRAND-NEW. 3' Stick! This is a slightly bulkier unit than the comparable 1-ton Relys and Machpros.



15HP UPGRADED ENGINE, 38" WIDE, 7" TRACKS, MANUAL THUMB WITH UPGRADE AVAILABLE TO HYDRO ($599), ELECTRIC KEY START, PUSH BLADE, AUXILLARY HYDRAULIC LINES ROUTED IN THE ARM FOR EXTRA PROTECTION, SIDE STICK PILOT CONTROLS, 360 DEGREE ROTATE. WEIGHS 2200LBS. COMES WITH 15" BUCKET, MANY ATTACHMENTS IN STOCK- Hydraulic Buckets up to 40" compatible.



This model digs over 5.5' down. Boom Lighting with Aux wiring, all standard. If you're looking for the easiest to work on, slightly larger upgrade from the 12-13s, this is it!



Attachments are in stock and ready to go!



  • Engine Brand:RATO
  • Engine Engine Model: R420D
  • Working Weight:    1050kg/2315lbs
  • Bucket capacity(m³):    0.025
  • Climbing ability(%):      35
  • Fuel grade:                    92#
  • Fuel type:                      Gasoline
  • Engine oil change quantity (L): 1.1
  • Theoretical fuel consumption (L/h): 0.5-1.2
  • Traveling speed low/high speed(Km/h): 0~2.0

Hydraulic system:

  • Rated set pressure (Mpa):       23.5
    Rated set pressure (Mpa):       18
    Travel hydraulic motor type:    BM6K-315
    Slewing hydraulic motor type: BM2-315
  • Fuel tank Fuel tank(L): 6.7
  • Hydraulic oil tank (L): 18
  • Maximum flow rate of main pump(L/min): 23.4

Operating parameters:

  • Max Arm Height: 102.76 inches
  • Max Unloading Height: 72.83 inches
  • Max Digging Depth: 65 inches
  • Max Digging Radius: 112.2 inches
  • Overall Length: 84.25 inches
  • Overall Width: 39.37 inches
  • Maximum power(Kw): 8.6
  • Maximum speed (rpm): 3600

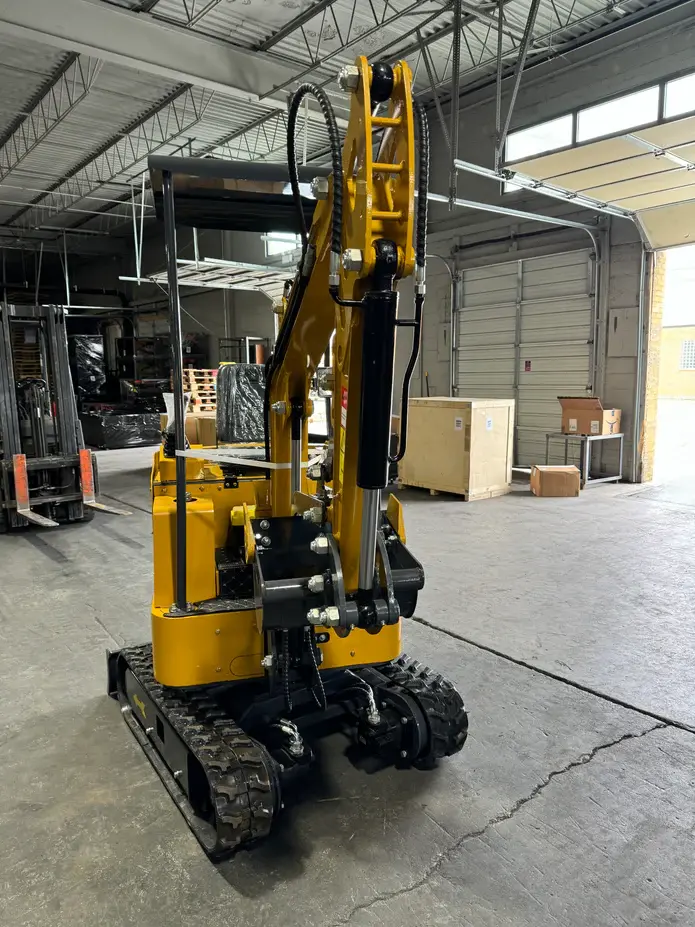

AGT H15 Mini Excavator, Pilot Controls, Thumb, 15HP, 2 Colors!

$7,499.00 Regular Price
$5,299.00Sale Price
